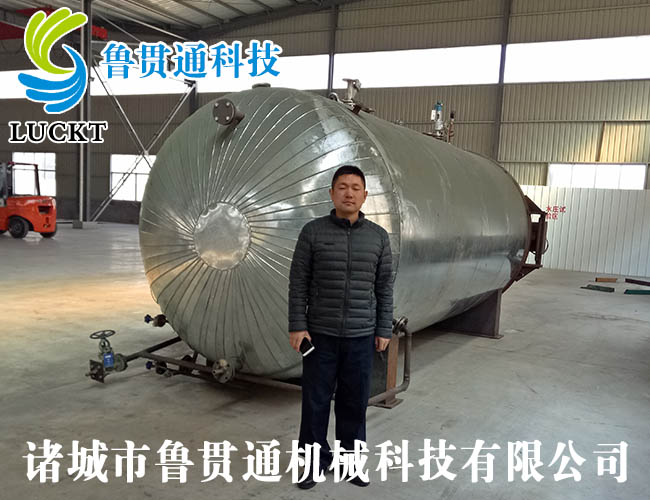

Conductive oil curing tank

Name:Conductive oil curing tank

Details

Open the door: Manual quick open the door, a single person can easily complete all the steps. This design is currently the domestic open door design and philosophy. Power switch when the normal shutdown cans.
1, the sealing method: cans Flange inflatable silicone seals, as long as the tank pressure, the tank door will not leak out, and the greater the pressure the better seal. Open the door to deflate the pressure relief valve groove, sealing ring automatically retreat sealing flange groove, convenient and versatile, easy maintenance, sealing effect is significantly better than other ways, the sealing ring service life of 2 years.
2, the way of safe chain: the use of safety interlock device is to prevent the device in a pressure or pressure with the work, the wrong open the canned door caused by unsafe incidents. Solve the security risks caused by workers misuse and other reasons. The device in the tank door design 3 sets of safety interlock device, as follows:
(1), the pressure automatic safety chain: Set the pressure in the top of the tank door automatic interlock device, when the tank pressure reaches 0.01mpa, the suspension chain locks automatically float up the tank door. As long as there is pressure in the tank, the tank door can not be opened to prevent the safety hazards caused by workers' misoperation.
(2), manual safety chain: work only to close the manual chain valve, the tank can be pressurized heating, or manual chain valve is connected with the external tank, the tank can not form pressure. Open the door when you must manually open the chain valve, or can not rotate the tank door, can not open the tank door. To ensure that the autoclave can open the canister only under no pressure, as long as there is pressure, it can not open the canister even if the worker misoperates, thus solving the potential safety hazard caused by the worker's misoperation.
(3), ring safety chain: as long as there is pressure inside the tank sealed tank, the ring firmly against the flange, which can not rotate the tank door, open the door, only the complete removal of the pressure, the seal back to the seal groove In order to turn the cans.
